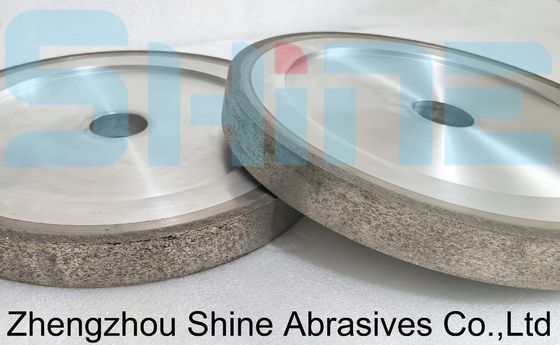

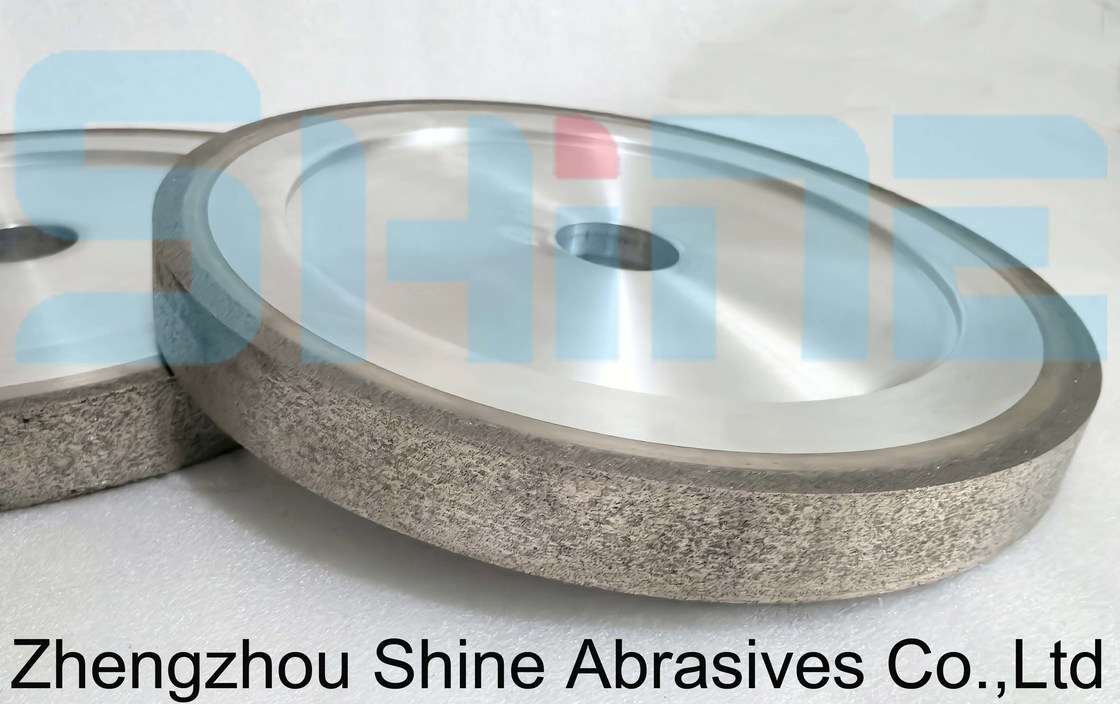

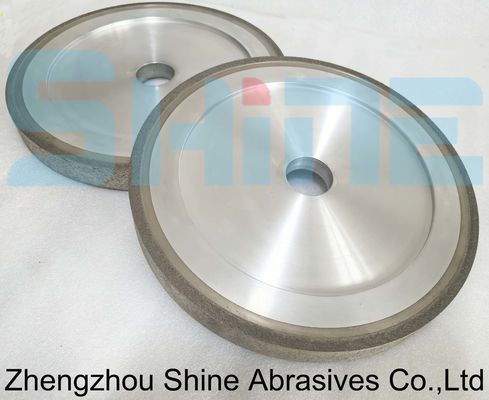

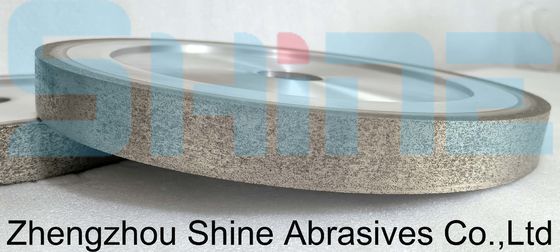

Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding

Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding

  • Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding
  • Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding
  • Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding
  • Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding
Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding
جزئیات محصول:
محل منبع: چین
نام تجاری: Shine Abrasives
گواهی: ISO
شماره مدل: 4V2 1A1 14A2
پرداخت:
مقدار حداقل تعداد سفارش: 2 قطعه
قیمت: FOB
جزئیات بسته بندی: یکی تو جعبه
زمان تحویل: 5 روز کاری
شرایط پرداخت: L/C ، T/T
قابلیت ارائه: 1000 PCS در یک هفته
مخاطب
توضیحات محصول جزئیات
مواد باند: فلزی اندازه سوراخ: سفارشی
رنگ: نقره، خاکستري، سياه مواد مناسب: فلز، سرامیک، شیشه، سنگ
نشان: بادوام کاربرد: سنگ زنی و صیقل دادن مواد سخت و شکننده
حداکثر بار: سفارشی مدل: HT-MW
Cbn سایز حوله: 15x10 میلی متر سختی: استاندارد
مواد باندینگ: فلزی ماشین: دستگاه پولیش دستی
بخش ساینده: 10 * 10 میلی متر، 15 * 10 میلی متر قطر سوراخ: استاندارد
ویژگی: راندمان بالا ، طول عمر طولانی ، خود نشان دادن خوب
برجسته کردن:

metal bond diamond grinding wheel,sintered diamond tool for gem grinding,diamond grinding wheel for gemstones

,

sintered diamond tool for gem grinding

,

diamond grinding wheel for gemstones

Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding

Shine Abrasives Metal bond diamond wheels are essential tools for grinding glass and ceramics, offering numerous advantages such as high durability, excellent cutting performance, and the ability to achieve superior surface finishes.Their robust design and versatility make them invaluable in various applications, from manufacturing to precision finishing. Proper selection and maintenance will enhance their performance and longevity.







Type 1A1 Flat metal bond diamond grinding wheel
Concentration 50%,75%,125%,150%
Mesh

46#,60#,80#,100#,120#(coarse grinding);

120#,150#,180#,200#,240#(medium grinding);
280#,320#,400#,500#,600#(fine grinding);
800#,1000#,1200#,1500#,2000#,3000#(polishing)
Specification

D75-H10-T5-X10 D150-H19-X5-T5

D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75
D175-H127-X4-T5 D250-H40-X10-T3
D300-H127-X10-T40 D350-H127-T20-X10
D400-H127-T40-X10 D500-H203-X10-T32
Specification sizes can be customized
Application ard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc



If your machine allows, adjust the wheel speed to the recommended setting for dressing. Typically, a lower speed is preferred to enhance control and reduce heat generation.

If applicable, apply coolant to the dressing area to minimize heat buildup and improve the dressing process.
Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding 0
